Introduction
DIN 137A

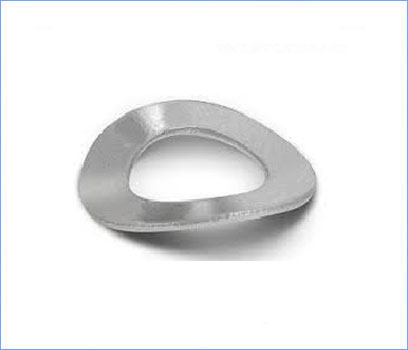

| WAVE WASHER AS PER DIN 137 | |||||||||

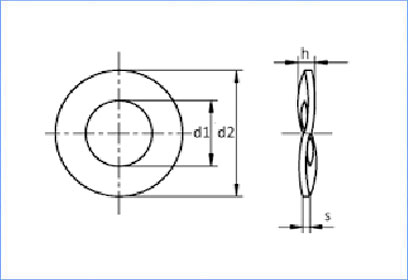

| PART CODE | SIZE | INNER DIAMETER (d1) | OUTER DIAMETER (d2) | THICKNESS (S) | HEIGHT (h) | ||||
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | ||
| WAW03000 | M3 | 2.90 | 3.20 | 7.63 | 8.37 | 0.45 | 0.55 | 0.80 | 1.60 |
| WAW04000 | M4 | 4.00 | 4.30 | 8.63 | 9.37 | 0.45 | 0.55 | 1.00 | 2.00 |
| WAW05000 | M5 | 5.00 | 5.30 | 10.67 | 11.37 | 0.45 | 0.55 | 1.10 | 2.20 |
| WAW06000 | M6 | 6.10 | 6.40 | 11.67 | 12.37 | 0.45 | 0.55 | 1.30 | 2.60 |
| WAW08000 | M8 | 8.04 | 8.40 | 14.55 | 15.45 | 0.74 | 0.86 | 1.50 | 3.00 |
| WAW10000 | M10 | 10.07 | 10.50 | 20.55 | 21.45 | 0.93 | 1.07 | 2.10 | 4.20 |
| WAW12000 | M12 | 12.57 | 13.00 | 23.55 | 24.45 | 1.13 | 1.27 | 2.50 | 5.00 |
| WAW14000 | M14 | 14.57 | 15.00 | 27.55 | 28.45 | 1.52 | 1.68 | 3.00 | 6.00 |
| WAW16000 | M16 | 16.57 | 17.00 | 29.55 | 30.45 | 1.52 | 1.68 | 3.20 | 6.40 |
| WAW18000 | M18 | 18.48 | 19.00 | 33.55 | 34.45 | 1.52 | 1.68 | 3.30 | 6.60 |
| WAW20000 | M20 | 20.48 | 21.00 | 35.35 | 36.65 | 1.52 | 1.68 | 3.70 | 7.40 |
| WAW22000 | M22 | 22.48 | 23.00 | 39.35 | 40.65 | 1.70 | 1.90 | 3.90 | 7.80 |
| WAW24000 | M24 | 24.48 | 25.00 | 43.35 | 44.65 | 1.70 | 1.90 | 4.10 | 8.20 |
| WAW30000 | M30 | 30.48 | 31.00 | 55.35 | 56.65 | 2.10 | 2.30 | 5.00 | 10.00 |
