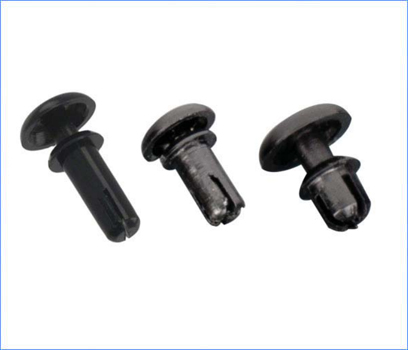

Snap Rivet I
Introduction
A snap rivet is a type of fastener that is used to join two or more materials together. It consists of a cylindrical body with a flared head on one end, and a mandrel or pin on the other end. The mandrel is inserted into the body of the rivet, and when the rivet is inserted into a pre-drilled hole in the material, the mandrel expands the body of the rivet, creating a secure and permanent connection. Snap rivets are commonly made of strong and durable materials such as aluminium, steel, or stainless steel, and are available in a range of sizes to suit different applications
Standard Colour : Black
Operating Temperature : -25° C to +85°C.

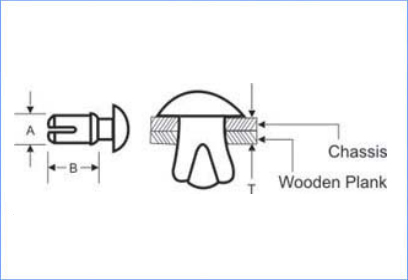

| Description | Hole Dia (mm) A | Hole Dia (mm) B | Total Material Thickness ‘T’ | Standard Packing |
| SOF 355 | 3.0 | 5.5 | 2.5 - 4.0 | 500 Nos. |
| SOF 365 | 3.0 | 6.5 | 3.5 - 5.0 | 500 Nos. |
| SOF 3565 | 3.5 | 6.5 | 3.5 - 5.0 | 500 Nos. |
| SOF 4040 | 4.0 | 4.0 | 1.2 - 2.5 | 500 Nos. |
| SOF 4080 | 4.0 | 8.5 | 3.5 - 5.0 | 500 Nos. |
Snap Rivet II / Name Plate Mounting Buttons
Introduction
It is a two piece all plastic blind rivet that securely joins two or more materials of varying thickness of materials. Generally suitable for fastening most materials including metal, wood, hardboard, rubber, glass and specialty plastic. They provide positive locking and are vibration resistant
Standard Colour : Black
Operating Temperature : -25° C to +85°C.
| Description | Hole Dia (mm) A | Hole Dia (mm) B | Total Material Thickness ‘T’ | Standard Packing |
| SOF 355 | 3.0 | 5.5 | 2.5 - 4.0 | 500 Nos. |
| SOF 365 | 3.0 | 6.5 | 3.5 - 5.0 | 500 Nos. |
| SOF 3565 | 3.5 | 6.5 | 3.5 - 5.0 | 500 Nos. |
| SOF 4040 | 4.0 | 4.0 | 1.2 - 2.5 | 500 Nos. |
| SOF 4080 | 4.0 | 8.5 | 3.5 - 5.0 | 500 Nos. |
