DIN - 125

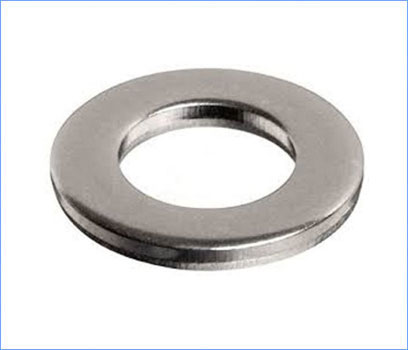

| PLAIN WASHER As Per Din 125 | ||||||||
| Part Code | Dia | ID (d1) | OD (d2) | Thickness (h) | ||||
| MIN | MAX | MAX | MIN | NOM | MAX | MIN | ||
| MPLW03000 | M3 | 3.20 | 3.38 | 7.00 | 6.64 | 0.5 | 0.55 | 0.45 |
| MPLW035000 | M3.5 | 3.70 | 3.88 | 8 | 7.64 | 0.5 | 0.55 | 0.45 |
| MPLW04000 | M4 | 4.30 | 4.48 | 9 | 8.64 | 0.8 | 0.90 | 0.70 |
| MPLW50000 | M5 | 5.30 | 5.48 | 10 | 9.64 | 1 | 1.10 | 0.90 |
| MPLW06000 | M6 | 6.40 | 6.62 | 12 | 11.57 | 1.6 | 1.80 | 1.40 |
| MPLW07000 | M7 | 7.40 | 7.62 | 14 | 13.57 | 1.6 | 1.80 | 1.40 |
| MPLW08000 | M8 | 8.40 | 8.62 | 16 | 15.57 | 1.6 | 1.80 | 1.40 |
| MPLW010000 | M10 | 10.50 | 10.77 | 20 | 19.48 | 2 | 2.20 | 1.80 |
| MPLW12000 | M12 | 13.00 | 13.27 | 24 | 23.48 | 2.5 | 2.70 | 2.30 |
| MPLW14000 | M14 | 15.00 | 15.27 | 28 | 27.48 | 2.5 | 2.70 | 2.30 |
| MPLW16000 | M16 | 17.00 | 17.27 | 30 | 29.48 | 3 | 3.30 | 2.70 |
| MPLW18000 | M18 | 19.00 | 19.33 | 34 | 33.38 | 3 | 3.30 | 2.70 |
| MPLW20000 | M20 | 21.00 | 21.33 | 37 | 36.38 | 3 | 3.30 | 2.70 |
| MPLW22000 | M22 | 23 | 23.33 | 39 | 38.38 | 3 | 3.3 | 2.7 |
| MPLW24000 | M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 |
| MPLW26000 | M26 | 27 | 27.33 | 50 | 49.38 | 4 | 4.3 | 3.7 |
| MPLW27000 | M27 | 28 | 28.33 | 50 | 49.38 | 4 | 4.3 | 3.7 |
| MPLW28000 | M28 | 29 | 29.33 | 50 | 49.38 | 4 | 4.3 | 3.7 |
| MPLW30000 | M30 | 31 | 31.39 | 56 | 55.26 | 4 | 4.3 | 3.7 |
| MPLW32000 | M32 | 33 | 33.62 | 60 | 58.8 | 5 | 5.6 | 4.4 |
| MPLW33000 | M33 | 34 | 34.62 | 60 | 58.8 | 5 | 5.6 | 4.4 |
| MPLW35000 | M35 | 36 | 36.62 | 66 | 64.8 | 5 | 5.6 | 4.4 |
| MPLW36000 | M36 | 37 | 37.62 | 66 | 64.8 | 5 | 5.6 | 4.4 |
| MPLW38000 | M38 | 39 | 39.62 | 72 | 70.8 | 6 | 6.6 | 5.4 |
| MPLW39000 | M39 | 40 | 40.62 | 72 | 70.8 | 6 | 6.6 | 5.4 |
| MPLW40000 | M40 | 41 | 41.62 | 72 | 70.8 | 6 | 6.6 | 5.4 |
