Introduction

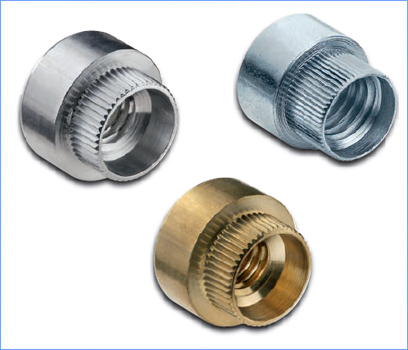

Rozen Nut is torque-resistant and capable of loads applied from bothsides. Rozen Nut can be used in surfacetreated, ready-plated parts, so eliminating the need for time-consuming cleaning of internal threads and reworking damage at the surface. When turning in the screw, it is impossible for the Rozen Nut to be forced out of the hole. This saves incalculable time losses. Rozen Nut sits with a precise centric fit without the use of templates or other positioning devices. Rozen Nut is also suitable for application in high-quality materials.

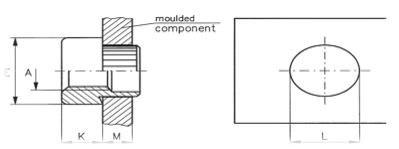

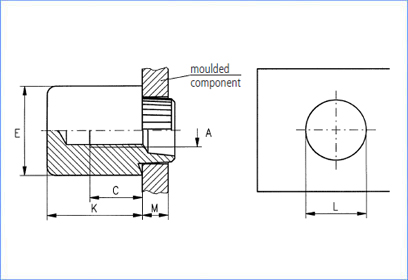

| SR NO | CODE | SHEET THICKNESS (M) | COLLER HEIGHT FOR FLAIR FINISH | DIAMETER | BODY DIAMETER ( E ) NOM | NUT HEIGHT (K) NOM | HOLE DIA (L) NOM | ||
| 1 | 721 | 0.5 - 0.6 | 1.0 - 1.10 | M2 | 5.00 | 2.30 | 3.50 | ||
| 2 | 722 | 0.70 | 1.20 | M2.5 | 5.50 | 2.80 | 4.20 | ||
| 3 | 723 | 0.80 | 1.30 | M3 | 5.50 | 2.80 | 4.20 | ||
| 4 | 724 | 0.9 - 1.00 | 1.40 - 1.50 | M3.5 | 7.00 | 3.20 | 5.50 | ||
| 5 | 725 | 1.1 - 1.30 | 1.60 - 1.80 | M4 | 7.00 | 3.20 | 5.50 | ||
| 6 | 726 | 1.40 - 1.60 | 1.90 - 2.10 | M5 | 8.50 | 3.80 | 6.50 | ||
| 7 | 727 | 1.70 - 1.90 | 2.20 - 2.40 | M6 | 10.00 | 5.10 | 7.70 | ||
| 8 | 728 | 2.00 - 2.20 | 2.50 - 2.70 | M8 | 12.00 | 6.50 | 9.70 | ||
| 9 | 729 | 2.30 - 2.50 | 2.80 - 3.00 |  |
|||||
| 10 | 730 | 2.60 - 2.80 | 3.10 - 3.30 | ||||||
| 11 | 731 | 2.90 - 3.10 | 3.40 - 3.60 | ||||||
| 12 | 732 | 3.20 - 3.40 | 3.70 - 3.90 | ||||||
| 13 | 733 | 3.50 - 3.70 | 4.00 - 4.20 | ||||||
| 14 | 734 | 3.80 - 4.00 | 4.30 - 4.50 | ||||||
| 15 | 735 | 4.10 - 4.30 | 4.60 - 4.80 | ||||||
