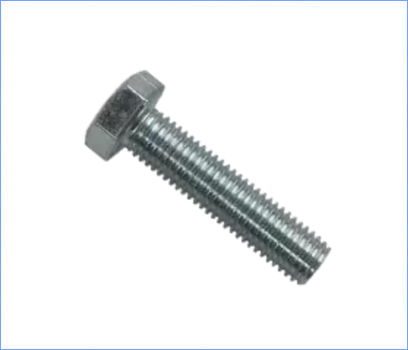

Hex Bolt

Introduction

DIN - 933, 558, 7990
IS - 1363 - 1992 / ISO - 4014

A hex bolt, also known as a hexagonal head bolt, is a type of fastener with a hexagonal-shaped head and a threaded shaft. It is designed to be tightened or loosened using a hexagonal wrench or socket. Hex bolts are commonly used in construction, automotive, and machinery applications. They are available in a variety of materials, including steel, stainless steel, and brass, and in a range of sizes and grades to meet different strength and corrosion resistance requirements. Hex bolts can be used in conjunction with a variety of other fasteners, such as nuts, washers, and lock washers, to secure joints and prevent them from coming loose.

Hex Bolt

Hex bolts (six sided heads) are the industry standard for fasteners with forged heads.
Steel Grades: 4.6, 8.8, 10.9, 12.9
Finish: Self, Black, Bright Zinc, Hot Dip Galvanized (ROHS)

Dimensions

Full Thread Hex Bolt As per Din 933
DIAMETER (d) 3 x 0.50 P 4 x 0.70 P 5 x 0.80 P 6 x 1.00 p 8 x 1.25 P 10 x 1.50 P 12 x 1.75 P
ACROSS FLAT (s) Min 5.32 6.78 7.78 9.78 12.73 16.73 18.67
Max 5.50 7.00 8.00 10.00 13.00 17.00 19.00
ACROSS CORNER (e) Min 6.01 7.66 8.79 11.05 14.38 18.90 21.10
HEAD THICKNESS (k) Nom 2.00 2.80 3.50 4.00 5.30 6.40 7.50
Min 1.88 2.68 3.35 3.85 5.15 6.22 7.32
Max 2.12 2.92 3.65 4.15 5.45 6.56 7.68
Length Min Max
16 15.65 16.35 HBT03016 HBT04016 HBT05016 HBT06016 HBT08016 HBT10016 HBT12016
20 19.58 20.42 HBT03020 HBT04020 HBT05020 HBT06020 HBT08020 HBT10020 HBT12020
25 24.58 25,42 HBT03025 HBT04025 HBT05025 HBT06025 HBT08025 HBT10025 HBT12025
30 29.58 30.42 HBT03030 HBT04030 HBT05030 HBT06030 HBT08030 HBT10030 HBT12030
35 34.50 35.50 HBT03035 HBT04045 HBT05035 HBT06035 HBT08035 HBT10035 HBT12035
40 39.50 40.50 HBT03040 HBT04040 HBT05040 HBT06040 HBT08040 HBT10040 HBT12040
45 44.50 45.50 HBT03045 HBT04045 HBT05045 HBT06045 HBT08045 HBT10045 HBT12045
50 49.50 50.50 HBT03050 HBT04050 HBT05050 HBT06050 HBT08050 HBT10050 HBT12050
55 54.40 55.60 HBT03055 HBT04055 HBT05055 HBT06055 HBT08055 HBT10055 HBT12055
60 59.40 60.60 HBT03060 HBT04060 HBT05060 HBT06060 HBT08060 HBT10060 HBT12060
65 64.40 65.60 HBT03065 HBT04065 HBT05065 HBT06065 HBT08065 HBT10065 HBT12065
70 69.40 70.60 HBT03070 HBT04070 HBT05070 HBT06070 HBT08070 HBT10070 HBT12070
80 79.40 80.60 HBT03080 HBT04080 HBT05080 HBT06080 HBT08080 HBT10080 HBT12080
90 89.30 90.70 HBT03090 HBT04090 HBT05090 HBT06090 HBT08090 HBT10090 HBT12090
100 99.30 100.70 HBT03100 HBT04100 HBT05100 HBT06100 HBT08100 HBT10100 HBT12100
110 109.30 110.70 HBT03110 HBT04110 HBT05110 HBT06110 HBT08110 HBT10110 HBT12110
120 119.30 120.70 HBT03120 HBT04120 HBT05120 HBT06120 HBT08120 HBT10120 HBT12120
130 129.20 130.80 HBT03130 HBT04130 HBT05130 HBT06130 HBT08130 HBT10130 HBT12130
140 139.20 140.80 HBT03140 HBT04140 HBT05140 HBT06140 HBT08140 HBT10140 HBT12140
150 149.20 150.80 HBT03150 HBT04150 HBT05150 HBT06150 HBT08150 HBT10150 HBT12150
160 159.20 160.80 HBT03160 HBT04160 HBT05160 HBT06160 HBT08160 HBT10160 HBT12160
180 179.20 180.80 HBT03180 HBT04180 HBT05180 HBT06180 HBT08180 HBT10180 HBT12180
200 199.00 201.00 HBT03200 HBT04200 HBT05200 HBT06200 HBT08200 HBT10200 HBT12200
Full Thread Hex Bolt As per Din 933
DIAMETER (d) 14 x 2.00 P 16 x 2.00 P 18 x 2.50 P 20 x 2.50 P 24 x 3.00 P 30 x 3.50 P
ACROSS FLAT (s) Min 21.67 23.67 26.67 29.67 35.38 45.00
Max 22.00 24.00 27.00 30.00 36.00 46.00
ACROSS CORNER (e) Min 24.49 26.75 30.14 33.53 39.98 50.85
HEAD THICKNESS (k) Nom 8.80 10.00 11.50 12.50 15.00 18.70
Min 8.62 9.82 11.28 12.28 14.78 18.28
Max 8.98 10.18 11.72 12.72 15.22 19.12
Length Min Max
25 24.58 25,42 HBT14025 HBT16025 - - - -
30 29.58 30.42 HBT14030 HBT16030 HBT18030 - - -
35 34.50 35.50 HBT14035 HBT16035 HBT18035 HBT20035 HBT24035 -
40 39.50 40.50 HBT14040 HBT16040 HBT18040 HBT20040 HBT24040 -
45 44.50 45.50 HBT14045 HBT16045 HBT18045 HBT20045 HBT24045 HBT30045
50 49.50 50.50 HBT14050 HBT16050 HBT18050 HBT20050 HBT24050 HBT30050
55 54.40 55.60 HBT14055 HBT16055 HBT18055 HBT20055 HBT24055 HBT30055
60 59.40 60.60 HBT14060 HBT16060 HBT18060 HBT20060 HBT24060 HBT30060
65 64.40 65.60 HBT14065 HBT16065 HBT18065 HBT20065 HBT24065 HBT30065
70 69.40 70.60 HBT14070 HBT16070 HBT18070 HBT20070 HBT24070 HBT30070
80 79.40 80.60 HBT14080 HBT16080 HBT18080 HBT20080 HBT24080 HBT30080
90 89.30 90.70 HBT14090 HBT16090 HBT18090 HBT20090 HBT24090 HBT30090
100 99.30 100.70 HBT14100 HBT16100 HBT18100 HBT20100 HBT24100 HBT30100
110 109.30 110.70 HBT14110 HBT16110 HBT18110 HBT20110 HBT24110 HBT30110
120 119.30 120.70 HBT14120 HBT16120 HBT18120 HBT20120 HBT24120 HBT30120
130 129.20 130.80 HBT14130 HBT16130 HBT18130 HBT20130 HBT24130 HBT30130
140 139.20 140.80 HBT14140 HBT16140 HBT18140 HBT20140 HBT24140 HBT30140
150 149.20 150.80 HBT14150 HBT16150 HBT18150 HBT20150 HBT24150 HBT30150
160 159.20 160.80 HBT14160 HBT16160 HBT18160 HBT20160 HBT24160 HBT30160
180 179.20 180.80 HBT14180 HBT16180 HBT18180 HBT20180 HBT24180 HBT30180
200 199.00 201.00 HBT14200 HBT16200 HBT18200 HBT20200 HBT24200 HBT30200
