Introduction
These standoffs are installed with a squeeze in purchased or drilled round holes and become Permanently mounted in thin sheet Metal

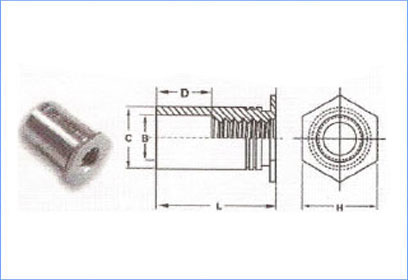

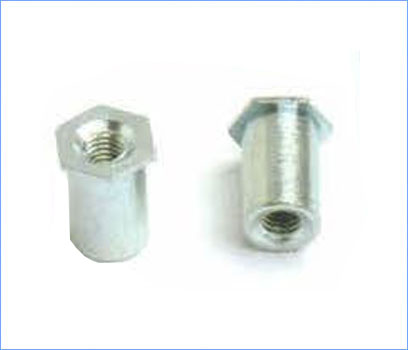

THROUGH HOLE THREADED STANDOFFS- TYPE KSO, KSOS & KSOAThrough hole Threaded standoffs are installed with there Heads flush with one surface of mounting sheet meal.
All Dimensions are in millimeters
| All dimensions are in millimeters | ||||||||||||||||
| Thread Size x pitch | Type | Thread code | Length “L” +0.05-0.13 (Length code in Millimeters) |
|||||||||||||
| Steel | Stainless steel | Aluminum | ||||||||||||||
| M3 x 0.5 | S-KSO | S-KSOS | S-KSOA | M 3 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | N/A | N/A | N/A |
| M3.5 x 0.6 | S-KSO | S-KSOS | S-KSOA | M 3.5 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 |
| M4 x 0.7 | M4 | |||||||||||||||
| M5 x 0.8 | M5 | |||||||||||||||
| D – Dimensions+0.25 | None | 4 | 8 | 11 | ||||||||||||
