Introduction
A cage nut is a type of fastener that is used to provide a removable and adjustable connection point in a material. It consists of a square or rectangular nut that is encased in a cage-like structure, which allows it to be easily inserted and removed from a material. The cage nut is typically made of a strong and durable metal such as steel, and has internal threads that can be used to secure a bolt or screw. It is commonly used in applications where the connection point needs to be adjustable or removable, such as in the installation of racks, cabinets, or other equipment.
To install a cage nut, the cage portion is first inserted into a pre-drilled or punched hole in the material, with the nut portion facing outward. The cage nut can then be tightened or loosened using a wrench or tool, and the bolt or screw can be attached to the internal threads. The cage nut is often used in conjunction with a panel mount or other type of fastener, which allows it to be securely fastened to the material. It is available in a range of sizes and thread types to suit different requirements and can be used in a variety of industries including automotive, aerospace, and construction
Specification Requirements:

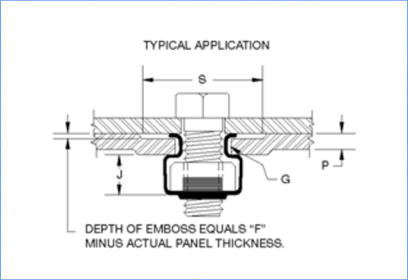

Dimensions: See dimensions above.
Nut & Cage Material: 18-8 Stainless Steel
Thread Requirements: 6G
Finish: Per ASTM A380
Dimensions in mm
| Cage nut As per | ||||||||||||||||||||||
| Part Code | Dia | Across Falt (B) | Total Hight (A) | Nut Hight (E) | Cage Thickness (T) | Plate Thickness (F) | Width (D) | Hole Size (G) | ||||||||||||||
| Nom | MIN | MAX | Nom | MIN | MAX | Nom | MIN | MAX | Nom | MIN | MAX | Nom | MIN | MAX | Nom | MIN | MAX | Nom | MIN | MAX | ||
| MCGN05000 | M5 X 0.8 P | 12.50 | 12.00 | 13.00 | 9.00 | 8.50 | 9.50 | 6.20 | 6.00 | 6.40 | 0.40 | 0.36 | 0.44 | 2.20 | 2.00 | 2.40 | 13.00 | 12.50 | 13.50 | 7.00 | 6.90 | 7.10 |
| MCGN05000 | M5 X 0.8 P | 12.50 | 12.00 | 13.00 | 9.70 | 9.20 | 10.20 | 6.20 | 6.00 | 6.40 | 0.40 | 0.36 | 0.44 | 3.30 | 3.10 | 3.50 | 13.00 | 12.50 | 13.50 | 7.00 | 6.90 | 7.10 |
| MCGN06000 | M6X1.0 P | 12.50 | 12.00 | 13.00 | 9.00 | 8.50 | 9.50 | 6.20 | 6.00 | 6.40 | 0.40 | 0.36 | 0.44 | 2.20 | 2.00 | 2.40 | 13.00 | 12.50 | 13.50 | 7.00 | 6.90 | 7.10 |
| MCGN06000 | M6X1.0 P | 12.50 | 12.00 | 13.00 | 9.70 | 9.20 | 10.20 | 6.20 | 6.00 | 6.40 | 0.40 | 0.36 | 0.44 | 3.30 | 3.10 | 3.50 | 13.00 | 12.50 | 13.50 | 7.00 | 6.90 | 7.10 |
| MCGN08000 | M8X1.25 P | 15.50 | 15.00 | 16.00 | 10.40 | 9.90 | 10.90 | 7.90 | 7.70 | 8.10 | 0.50 | 0.46 | 0.54 | 2.00 | 1.80 | 2.20 | 16.00 | 15.50 | 16.50 | 10.00 | 9.90 | 10.10 |
| MCGN08000 | M8X1.25 P | 15.50 | 15.00 | 16.00 | 11.90 | 11.40 | 12.40 | 7.90 | 7.70 | 8.10 | 0.50 | 0.46 | 0.54 | 2.70 | 2.50 | 2.90 | 16.00 | 15.50 | 16.50 | 10.00 | 9.90 | 10.10 |
| MCGN10000 | M10X1.5 P | 15.50 | 15.00 | 16.00 | 10.40 | 9.90 | 10.90 | 7.90 | 7.70 | 8.10 | 0.50 | 0.46 | 0.54 | 2.00 | 1.80 | 2.20 | 16.00 | 15.50 | 16.50 | 10.00 | 9.90 | 10.10 |
| MCGN10000 | M10X1.5 P | 15.50 | 15.00 | 16.00 | 11.90 | 11.40 | 12.40 | 7.90 | 7.70 | 8.10 | 0.50 | 0.46 | 0.54 | 2.70 | 2.50 | 2.90 | 16.00 | 15.50 | 16.50 | 10.00 | 9.90 | 10.10 |
