Introduction
Features :
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated

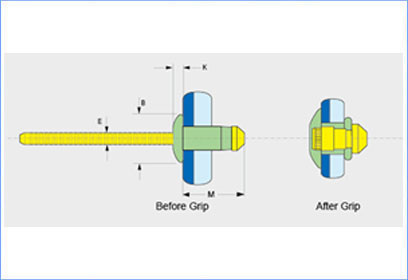

Specification:
| Part No |
Size |
Drill |
M |
Grip Range |
B |
K |
E |
Shear |
Tensile |
| Max |
Max |
Max |
Max |
KN Min |
KN Min |
| SUG-0812 |
6.4 (1/4”) |
6.7-6.9 |
13.7 |
1.50-3.50 |
13.4 |
3.4 |
4.2 |
10.5 |
8.8 |
| SUG-0813 |
15.0 |
2.80-4.80 |
13.4 |
3.4 |
4.2 |
12.0 |
8.8 |
| SUG-0814 |
15.6 |
3.35-5.35 |
13.4 |
3.4 |
4.2 |
12.5 |
8.8 |
| SUG-0815 |
17.0 |
4.80-6.80 |
13.4 |
3.4 |
4.2 |
12.5 |
8.8 |
| SUG-0817 |
6.6-6.8 |
19.0 |
6.80-8.80 |
13.4 |
3.4 |
4.2 |
14.0 |
8.8 |
| SUG-0818 |
19.7 |
7.50-9.50 |
13.4 |
3.4 |
4.2 |
15.0 |
8.8 |
| SUG-0819 |
21.0 |
8.80-10.80 |
13.4 |
3.4 |
4.2 |
16.0 |
8.8 |
| SUG-0821 |
23.0 |
10.80-12.80 |
13.4 |
3.4 |
4.2 |
16.0 |
8.8 |
| SUG-0823 |
25.0 |
12.80-14-80 |
13.4 |
3.4 |
4.2 |
16.0 |
8.8 |
