Introduction
Features :

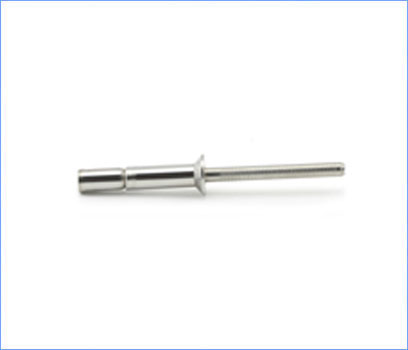

- Stainless Steel Out Lock CSK
Material :
- Body : 302 Series Stainless Steel
- Mandrel : 302 Series Stainless Steel
Finish :
- Body : Natural
- Mandrel : Natural
Specification:

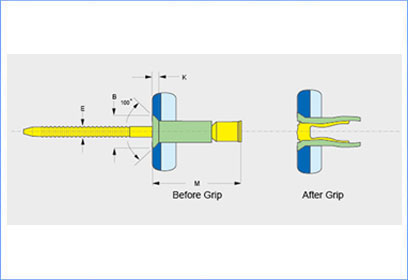

| Part No | Size | Drill | M | Grip Range | B | K | E | Shear | Tensile |
| Max | Max | Max | Max | KN Min | KN Min | ||||
| SOF-OC-0606 | 4.8 (3/16”) |
4.9-5.1 | 20 | 3.17-8.41 | 8.5 | 2.2 | 3.1 | 5.8 | 4.1 |
| SOF-OC-0608 | 26.2 | 3.17-12.22 | 8.5 | 2.2 | 3.1 | 5.8 | 4.1 | ||
| SOF-OC-0808 | 6.4 (1/4”) |
6.7-7.0 | 26.4 | 3.17-12.07 | 10.1 | 2.4 | 4.1 | 10.5 | 8.2 |
