Introduction
Features :
- All Steel Multi-Grip Type
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated

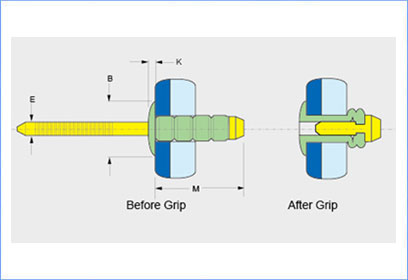

Specification:
| Part No |
Size |
Drill |
M |
Grip Range |
B |
K |
E |
Shear |
Tensile |
| Max |
Max |
Max |
Max |
KN Min |
KN Min |
| SSMG-0414 |
3.2 (1.8”) |
3.3-3.4 |
14.2 |
1.0-7.0 |
7.6 |
1.1 |
2.2 |
1.0 |
1.4 |
| SSMG-0516 |
4.0 (5/32”) |
4.1-4.2 |
15.7 |
2.0-8.0 |
8.4 |
1.5 |
2.9 |
1.5 |
2.0 |
| SSMG-0612 |
4.8 (3/16”) |
4.9-5.0 |
12.2 |
1.5-5.1 |
10.1 |
1.6 |
3.0 |
2.7 |
2.9 |
| SSMG-0614 |
13.7 |
1.5-6.3 |
10.1 |
1.6 |
3.0 |
2.7 |
2.9 |
| SSMG-0618 |
17.0 |
1.5-9.5 |
10.1 |
1.6 |
3.0 |
2.7 |
2.9 |
| SSMG-0622 |
20.1 |
6.4-12.7 |
10.1 |
1.6 |
3.0 |
2.7 |
2.9 |
