Introduction
Features :
- All Steel Multi-Grip Type
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated
Specification:

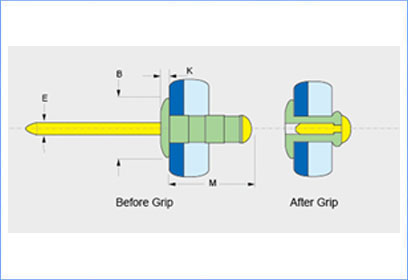

| Part No | Size | Drill | M | Grip Range | B | K | E | Shear | Tensile |
| Max | Max | Max | Max | KN Min | KN Min | ||||
| SOFMG 1624-0411 | 3.2 (1.8”) |
3.3-3.4 | 11.4 | 1.0-4.0 | 7.6 | 1.2 | 2.2 | 1.3 | 1.7 |
| SOFMG 1624-0414 | 14 | 3.7-6.6 | 7.6 | 1.2 | 2.2 | 1.3 | 1.7 | ||
| SOFMG 1624-0508 | 4.0 (5/32”) |
4.1-4.3 | 9.6 | 2.0-4.0 | 8.4 | 1.6 | 2.8 | 1.9 | 2.3 |
| SOFMG 1624-0514 | 13.7 | 1.4-5.0 | 8.4 | 1.6 | 2.8 | 1.9 | 2.3 | ||
| SOFMG 1624-0612 | 4.8 (3/16”) |
4.9-5.0 | 13.5 | 1.2-4.8 | 10.1 | 2.1 | 3.0 | 3.6 | 3.3 |
| SOFMG 1624-0616 | 15.7 | 4.0-6.3 | 10.1 | 2.1 | 3.0 | 4.5 | 3.4 |
