Introduction
Features :

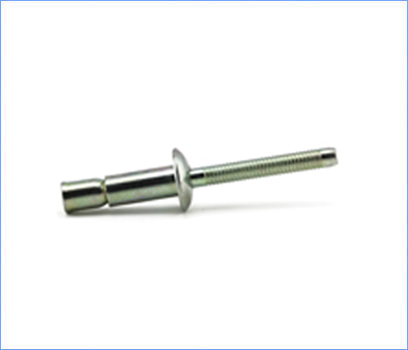

- Steel Mono-Lock Dome
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated
Specification:

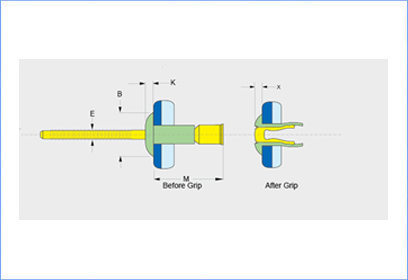

| Part No | Size | Drill | M | Grip Range | B | K | E | X | Shear | Tensile |
| Max | Max | Max | Max | Max | KN Min | KN Min | ||||
| SSMLD-0604 | 4.8 (3/16”) | 4.9-5.1 | 18.2 | 1.63-6.86 | 10.1 | 2.1 | 3.1 | 2.3 | 5.8 | 4.1 |
| SSMLD-0607 | 24.4 | 1.63-11.10 | 10.1 | 2.1 | 3.1 | 2.3 | 5.8 | 4.1 | ||
| SSMLD-0806 | 6.4 (1/4”) | 6.7-7.0 | 23.7 | 2.03-9.53 | 13.3 | 2.9 | 4.1 | 3.2 | 10.5 | 8.2 |
| SSLD-M0810 | 32.9 | 2.03-15.87 | 13.3 | 2.9 | 4.1 | 3.2 | 10.5 | 8.2 |
