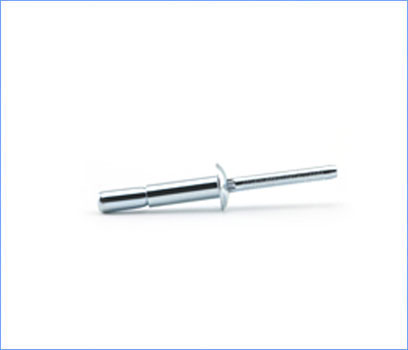

Introduction
Features :
- SOF-Steel Lock Dome
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated
Specification:
| Part No | Size | Drill | M | Grip Range | B | K | E | Shear | Tensile |
| Max | Max | Max | Max | KN Min | KN Min | ||||
| SID-4.8×10.0 | 4.8 (3/16”) |
4.9-5.1 | 18.2 | 1.58-6.85 | 10.2 | 2.3 | 3.1 | 5.6 | 4.4 |
| SID-4.8×14.0 | 24.6 | 1.58-11.09 | 10.2 | 2.3 | 3.1 | 5.6 | 4.4 | ||
| SID-6.4×14.0 | 6.4 (1/4”) |
6.7-7.0 | 25.3 | 2.04-9.52 | 13.5 | 2.9 | 4.1 | 10.5 | 8.2 |
| SID-6.4×20.0 | 35.6 | 2.04-15.87 | 13.5 | 2.9 | 4.1 | 10.5 | 8.2 |
