Introduction
Features :

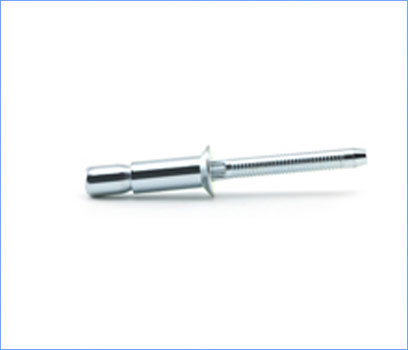

- Steel Sof-Lock CSK
Material :
- Body : Carbon Steel
- Mandrel : Carbon Steel
Finish :
- Body : Zinc Plated
- Mandrel : Zinc Plated
Specification:

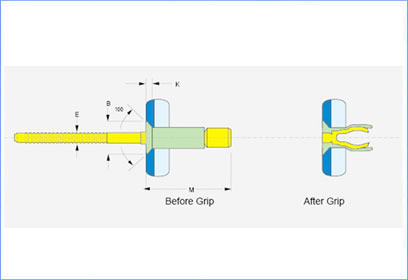

| Part No | Size | Drill | M | Grip Range | B | K | E | Shear | Tensile |
| Max | Max | Max | Max | KN Min | KN Min | ||||
| SSIC-4.8×12.0 | 4.8 (3/16”) |
4.9-5.1 | 20.2 | 3.17-8.41 | 9.2 | 2.0 | 3.1 | 5.4 | 4.0 |
| SSIC-4.8×14.0 | 26.5 | 3.17-12.22 | 9.2 | 2.0 | 3.1 | 5.4 | 4.0 | ||
| SSIC-6.4×17.0 | 6.4 (1/4”) |
6.7-7.0 | 28.3 | 4.32-12.06 | 11.4 | 2.2 | 4.1 | 10.5 | 8.2 |
