Introduction
Features :

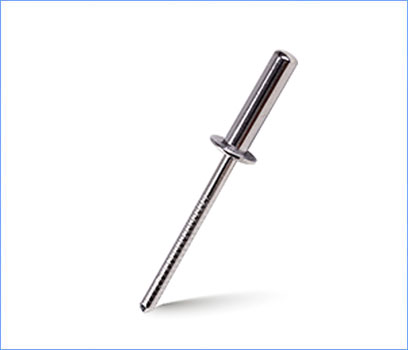

- The sealed blind rivet style is used where the riveted joint requires to be water or pressure tight and /or where mandrel head retention is required.
- The rivet mandrel head is inside the sealed body of the rivet, and on setting, remains inside the body
Advantages :
- Dome or Countersunk head style
- Available in variety of Materials
- Unique cup shaped end configured seal tight, preventing passage of vapor or liquid through set Rivet.
- Provides greater tensile and shear strength than equivalent open end.
Application :
- Containers
- Coach work
- Air Conditioning
Specification:
Part Number | Dia (d) mm/inch | Length (L) mm/inch | Grip Range mm/inch | Shear (n) n/lbs | Tensile (n) n/lbs | ||||
SESKK32065D | 3.2(1/8”) 3.3(.130) |
6.5 | .256 | 0.5-3.0 | .020-.118 | 2000 | 450 | 2500 | 562 |
SESKK32080D | 8.0 | .315 | 0.8-4.6 | .031-.181 | |||||
SESKK32095D | 9.5 | .374 | 1.2-6.1 | .047-.240 | |||||
SESKK32110D | 11.0 | .433 | 4.0-7.6 | .158-.299 | |||||
SESKK32127D | 12.7 | .500 | 5.5-9.3 | .217-.366 | |||||
SESKK40080D | 4.0(5/32”) 4.1(.161) |
8.0 | .315 | 0.5-3.8 | .020-.150 | 3000 | 674 | 3500 | 787 |
SESKK40095D | 9.5 | .374 | 0.8-5.3 | .031-.209 | |||||
SESKK40114D | 11.4 | .449 | 1.2-7.2 | .047-.283 | |||||
SESKK40127D | 12.7 | .500 | 4.0-8.5 | .157-.335 | |||||
SESKK40145D | 14.5 | .571 | 6.4-10.3 | .252-.406 | |||||
SESKK48080D | 4.8(3/16”) 4.9(.193) |
8.0 | .315 | 0.5-3.0 | .020-.118 | 4000 | 899 | 4400 | 989 |
SESKK48095D | 9.5 | .374 | 3.0-4.5 | .118-.177 | |||||
SESKK48114D | 11.4 | .449 | 4.5-6.4 | .177-.252 | |||||
SESKK48130D | 13.0 | .512 | 6.4-8.0 | .252-.315 | |||||
SESKK48140D | 14.5 | .571 | 8.0-9.5 | .315-.374 | |||||
SESKK48160D | 16.0 | .630 | 9.5-11.0 | .374-.433 | |||||
SESKK48180D | 18.0 | .709 | 11.0-13.0 | .433-.512 | |||||
SESKK48210D | 21.0 | .827 | 13.0-16.0 | .512-.630 | |||||
SESKK48250D | 25.0 | .984 | 16.0-20.0 | .630-.787 |
