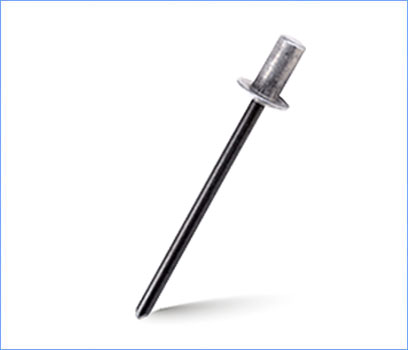

Sealed Blind Rivets Aluminum Alloy / Steel

SE Aluminum Alloy / Steel

Introduction

Features :

  • The sealed blind rivet style is used where the riveted joint requires to be water or pressure tight and /or where mandrel head retention is required.
  • The rivet mandrel head is inside the sealed body of the rivet, and on setting, remains inside the body

Advantages :

  • Dome or Countersunk head style
  • Available in variety of Materials
  • Unique cup shaped end configured seal tight, preventing passage of vapor or liquid through set Rivet.
  • Provides greater tensile and shear strength than equivalent open end.

Application :

  • Containers
  • Coach work
  • Air Conditioning
Weld Bush

Specification:

Part Number Dia (d) mm/inch Length (L) mm/inch Grip Range mm/inch Shear (n) n/lbs Tensile (n) n/lbs
SESAS32065D 3.2(1/8”)
3.3(.130)
6.5 .256 0.5-3.0 .020-.118 1100 247 1450 326
SESAS32080D 8.0 .315 0.8-4.6 .031-.181
SESAS32095D 9.5 .374 1.2-6.1 .047-.240
SESAS32110D 11.0 .433 4.0-7.6 .158-.299
SESAS32127D 12.7 .500 5.5-9.3 .217-.366
SESAS40080D 4.0(5/32”)
4.1(.161)
8.0 .315 0.5-3.8 .020-.150 1600 360 2200 495
SESAS40095D 9.5 .374 0.8-5.3 .031-.209
SESAS40114D 11.4 .449 1.2-7.2 .047-.283
SESAS40127D 12.7 .500 4.0-8.5 .157-.335
SESAS40145D 14.5 .571 6.4-10.3 .252-.406
SESAS48080D 4.8(3/16”)
4.9(.193)
8.0 .315 0.5-3.0 .020-.118 2200 495 3100 697
SESAS48095D 9.5 .374 3.0-4.5 .118-.177
SESAS48114D 11.4 .449 4.5-6.4 .177-.252
SESAS48130D 13.0 .512 6.4-8.0 .252-.315
SESAS48140D 14.5 .571 8.0-9.5 .315-.374
SESAS48160D 16.0 .630 9.5-11.0 .374-.433
SESAS48180D 18.0 .709 11.0-13.0 .433-.512
SESAS48210D 21.0 .827 13.0-16.0 .512-.630
SESAS48250D 25.0 .984 16.0-20.0 .630-.787
