Introduction
- Material : Steel
- Finish : Zinc Plated Clear trivalent passivated

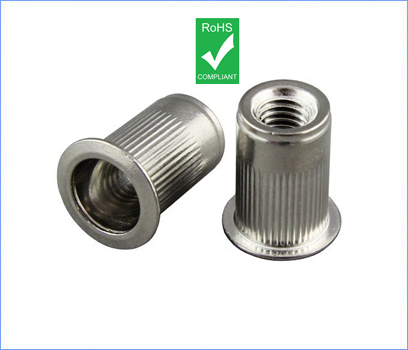

A round head nut insert is a type of fastener that is designed to be inserted into a workpiece and secured in place using a variety of methods such as rolling, pressing, or staking. It is typically made of steel or another metal, and has a small, cylindrical head with a threaded hole in the center. Round head nut inserts are thin in size and are used in a variety of applications, including automotive manufacturing, construction, and appliance production. They are commonly used to reinforce holes in thin materials, and offer several advantages over other types of fasteners, including high strength, corrosion resistance.
Specification:
| Round Head Nut Insert Thin - American | |||||||||||||||||

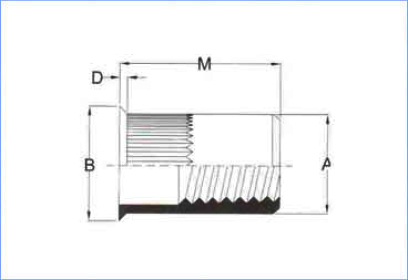

| A | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Recommended | |||||||||||||
| Part Code | Size | GRPI RANGE | HOLE SIZE | Body Dia | BODY leangth | Head Diameter | Head Hight | Max Torque | Pull out | Torque - to | Push - out | ||||||
| Max | Nom | Min | Max | Nom | Min | Max | Nom | Min | Max | Nm (max) | KN | Turn | KN | ||||
| RNITTN03000A | M3X0.5 | 0.5 - 2.0 | 4.80 | 4.72 | 8.70 | 8.50 | 8.90 | 5.30 | 5.00 | 5.60 | 0.40 | 0.20 | 0.60 | 1.50 | 2.70 | 0.40 | 0.80 |
| RNITTN04000A | M4X0.7 | 0.5 - 2.5 | 6.40 | 6.35 | 10.40 | 10.20 | 10.60 | 7.30 | 7.00 | 7.60 | 0.50 | 0.30 | 0.70 | 5.10 | 6.60 | 1.90 | 1.50 |
| RNITTN05000A | M5X0.8 | 0.5 - 2.5 | 7.20 | 7.10 | 12.00 | 11.80 | 12.20 | 8.10 | 7.80 | 8.40 | 0.50 | 0.30 | 0.70 | 7.90 | 8.00 | 2.60 | 1.90 |
| RNITTN06000A | M6X1 | 0.7 - 3.2 | 9.60 | 9.50 | 15.00 | 14.80 | 15.20 | 10.50 | 10.20 | 10.80 | 0.50 | 0.30 | 0.70 | 12.40 | 11.40 | 3.40 | 2.40 |
| RNITTN08000A | M8X1.25 | 0.7 - 3.2 | 10.60 | 10.50 | 16.00 | 15.80 | 16.20 | 11.50 | 11.20 | 11.80 | 0.50 | 0.30 | 0.70 | 16.40 | 15.70 | 3.60 | 2.80 |
| RNITTN10000A | M10X1.5 | 0.7 - 3.5 | 12.80 | 12.70 | 19.00 | 18.80 | 19.20 | 13.90 | 13.60 | 14.20 | 0.60 | 0.40 | 0.80 | 33.90 | 18.70 | 4.20 | 3.70 |
| Round Head Nut Insert Thin - Europian | |||||||||||||||||
| A | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Recommended | |||||||||||||
| Part Code | Size | GRPI RANGE | HOLE SIZE | Body Dia | BODY leangth | Head Diameter | Head Hight | max Torque | pull out | Torque - to | Push - out | ||||||
| Max | Nom | Min | Max | Nom | Min | Max | Nom | Min | Max | Nm (max) | KN | Turn | KN | ||||
| RNITTN03000E | M3X0.5 | 0.5 - 2.0 | 5.00 | 4.95 | 9.00 | 8.80 | 9.20 | 6.00 | 6.30 | 5.70 | 0.50 | 0.70 | 0.30 | 1.50 | 2.70 | 0.40 | 0.80 |
| RNITTN04000E | M4X0.7 | 0.5 - 2.5 | 6.00 | 5.95 | 10.00 | 9.80 | 10.20 | 7.00 | 7.30 | 6.70 | 0.50 | 0.70 | 0.30 | 5.10 | 3.60 | 2.00 | 1.20 |
| RNITTN05000E | M5X0.8 | 0.5 - 3.0 | 7.00 | 6.95 | 12.00 | 11.80 | 12.20 | 8.00 | 8.30 | 7.70 | 0.50 | 0.70 | 0.30 | 7.90 | 7.80 | 2.80 | 1.40 |
| RNITTN06000E | M6X1 | 0.7 - 3.2 | 9.00 | 8.95 | 15.00 | 14.80 | 15.20 | 10.00 | 10.30 | 9.70 | 0.50 | 0.70 | 0.30 | 12.40 | 15.80 | 5.00 | 2.60 |
| RNITTN08000E | M8X1.25 | 0.7 - 3.2 | 11.00 | 10.95 | 16.00 | 15.80 | 16.20 | 12.00 | 12.30 | 11.70 | 0.50 | 0.70 | 0.30 | 32.00 | 18.10 | 9.00 | 3.50 |
| RNITTN10000E | M10X1.5 | 0.7 - 3.2 | 13.00 | 12.95 | 20.00 | 19.80 | 20.20 | 14.00 | 14.30 | 13.70 | 0.70 | 0.90 | 0.50 | 45.00 | 20.80 | 16.70 | 3.90 |
| Round Head Nut Insert Thin - Long Series | |||||||||||||||||
| A | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Recommended | |||||||||||||
| Part Code | Size | GRPI RANGE | HOLE SIZE | Body Dia | BODY leangth | Head Diameter | Head Hight | Max Torque | Pull out | Torque - to | Push - out | ||||||
| Max | Nom | Min | Max | Nom | Min | Max | Nom | Min | Max | Nm (max) | KN | Turn/td>
| KN |
| ||||
| RNITTN04000G2 | M4X0.7 | 2.5 - 4.0 | 6.00 | 5.95 | 12.00 | 11.80 | 12.20 | 7.00 | 12.00 | 11.80 | 0.50 | 0.30 | 0.70 | 5.10 | 3.60 | 2.00 | 1.20 |
| RNITTN05000G2 | M5X0.8 | 2.5 - 4.5 | 7.00 | 6.95 | 14.00 | 13.80 | 14.20 | 8.00 | 14.00 | 13.80 | 0.50 | 0.30 | 0.70 | 7.90 | 7.80 | 2.80 | 1.40 |
| RNITTN06000G2 | M6X1 | 3.0 - 5.0 | 9.00 | 8.95 | 17.00 | 16.80 | 17.20 | 10.00 | 17.00 | 16.80 | 0.50 | 0.30 | 0.70 | 12.40 | 15.80 | 5.00 | 2.60 |
| RNITTN08000G2 | M8X1.25 | 3.0 - 5.5 | 11.00 | 10.95 | 18.50 | 18.30 | 18.70 | 12.00 | 18.50 | 18.30 | 0.50 | 0.30 | 0.70 | 32.00 | 18.10 | 9.10 | 3.50 |
| RNITTN10000G2 | M10X1.5 | 3.5 - 6.0 | 13.00 | 12.95 | 23.50 | 23.30 | 23.70 | 14.00 | 23.50 | 23.30 | 0.60 | 0.40 | 0.80 | 45.00 | 20.80 | 16.70 | 3.90 |
