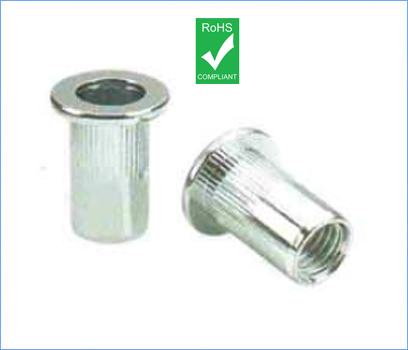

Open End
- Round with Groove, Flat Head - Steel
- Material : Steel
- Finish : Zinc Plated Clear trivalent passivated
Specification
| Round Body With Groove, Flat Head - Steel - Europeon | |||||||||||
| PART NUMBER | THREAD SIZE | GRIP RANGE | HOLE SIZE | BODY DIA | BODY LENGTH | HEAD DIAMETER | HEAD HEIGHT | RECOMMENDED MAX TORQUE | PULL OUT | TORQUE TO TURN | PUSH-OUT |
| (min-max) | A(max) | M(+/-0.2) | B(+/-0.3) | D(+/-0.2) | Nm(max) | kN | Nm(min) | kN | |||
| SOF-M3RGFHSEU | M3X0.5 | 0.5-2.0 | 5.0 | 4.96 | 9.7 | 8.0 | 0.8 | 1.5 | 4.2 | 1.1 | 1.8 |
| SOF-M4RGFHSEU | M4X0.7 | 0.5-2.5 | 6.0 | 5.96 | 10.5 | 9.0 | 0.8 | 5.1 | 5.5 | 2.2 | 2.9 |
| SOF-M5RGFHSEU | M5X0.8 | 0.5-2.5 | 7.0 | 6.96 | 12.0 | 10.0 | 1.0 | 7.9 | 8.0 | 3.4 | 4.2 |
| SOF-M6RGFHSEU | M6X1.0 | 1.0-3.5 | 9.0 | 8.96 | 14.5 | 13.0 | 1.5 | 12.4 | 10.8 | 4.7 | 6.5 |
| SOF-M8RGFHSEU | M8X1.25 | 1.0-4.0 | 11.0 | 10.95 | 16.0 | 16.0 | 1.5 | 32.0 | 12.5 | 6.8 | 7.9 |
| SOF-M10RGFHSEU | M10X1.5 | 1.0-4.0 | 13.0 | 12.96 | 22.0 | 19.0 | 2.0 | 45.0 | 17.3 | 16.7 | 10.7 |
| SOF-M12RGFHSEU | M12X1.75 | 1.0-5.0 | 16.0 | 15.96 | 23.5 | 22.0 | 2.0 | N/A | N/A | N/A | N/A |
| ROUND BODY WITH GROOVE, FLAT HEAD- LONG-STEEL-EUROPEON | |||||||||||
| SOF-M4RGFHLSEU | M4X0.7 | 2.5-3.5 | 6.0 | 5.96 | 11.7 | 9.0 | 0.8 | 5.1 | 5.5 | 2.2 | 2.9 |
| SOF-M5RGFHLSEU | M5X0.8 | 2.5-4.5 | 7.0 | 6.96 | 13.5 | 10.0 | 1.0 | 7.9 | 8.0 | 3.4 | 4.2 |
| SOF-M6RGFHLSEU | M6X1.0 | 3.0-5.0 | 9.0 | 8.96 | 17.0 | 13.0 | 1.5 | 12.4 | 10.8 | 4.7 | 6.6 |
| SOF-M8RGFHLSEU | M8X1.25 | 3.5-5.5 | 11.0 | 10.96 | 19.5 | 15.0 | 1.5 | 32.0 | 12.5 | 6.8 | 7.9 |
| SOF-M10RGFHLSEU | M10X1.5 | 3.5-5.5 | 13.0 | 12.96 | 23.5 | 19.0 | 2.0 | 45.0 | 17.3 | 16.7 | 10.7 |

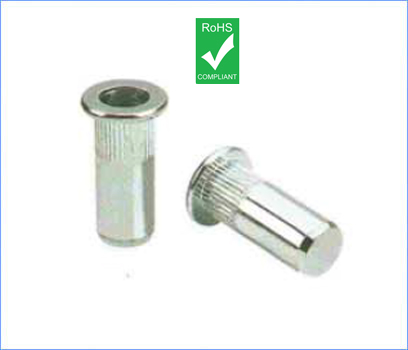

Sealed / Close End
- Round with Groove, Flat Head -Close End - Steel
- Material : Steel
- Finish : Zinc Plated Clear trivalent passivated
Specification
| Round Body, With Groove, Flat Head - Steel - Europeon | |||||||||||
| PART NUMBER | THREAD SIZE | GRIP RANGE | HOLE SIZE | BODY DIA | BODY LENGTH | HEAD DIAMETER | HEAD HEIGHT | RECOMMENDED MAX TORQUE | PULL OUT | TORQUE TO TURN | PUSH-OUT |
| (MIN~MAX) | A(MAX) | M(+/-0.2) | B(+/-0.3) | D(+/-0.2) | Nm(MAX) | Kn | Nm( Min ) | Kn | |||
| SOF-M4RGFHCTSEU | M4X0.7 | 0.5-2.5 | 6.0 | 5.96 | 14.9 | 9.0 | 0.8 | 5.1 | 5.5 | 1.5 | 2.9 |
| SOF-M5RGFHCTSEU | M5X0.8 | 0.5-2.5 | 7.0 | 6.96 | 17.0 | 10.0 | 1.0 | 7.9 | 8.0 | 3.0 | 4.2 |
| SOF-M6RGFHCTSEU | M6X1.0 | 1.0-3.5 | 9.0 | 8.96 | 20.0 | 13.0 | 1.5 | 12.4 | 10.8 | 3.4 | 6.5 |
| SOF-M8RGFHCTSEU | M8X1.25 | 1.0-4.0 | 11.0 | 10.96 | 23.5 | 16.0 | 1.5 | 32.0 | 12.5 | 5.6 | 7.9 |
| SOF-M10RGFHCTSEU | M10X1.5 | 1.0-4.0 | 13.0 | 12.96 | 31.0 | 19.0 | 2.0 | 45.0 | 17.3 | 16.7 | 10.7 |
