Introduction
Features :
- Clamping loads spread over wide area, avoiding damage to vulnerable materials. High tolerance for over sized holes. It can draw together and clamp components even when poorly aligned.
Advantages :
- Exceptional pull-up/clamp up properties.
- Provide large secondary bearing surface.
Application :
- Plastic framed windows
- Plasterboard & Furniture
- Soft Material such as wood
Specification:

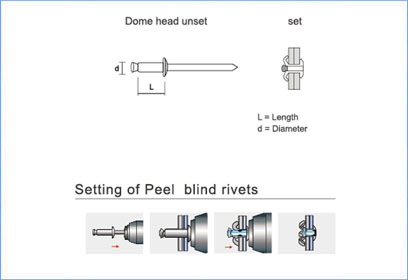

| Part Number | Dia (d) mm/inch | Length (L) mm/inch | Grip Range mm/inch | Shear (n ) mm/ inch | Tensile (n ) mm/ inch | ||||
| PESAS40100D | 4.0{5/32") 4.3(.169) |
10.0 | .394 | 2.0-4.0 | .079-.157 | 1450 | 326 | 1800 | 405 |
| PESAS40120D | 12.0 | .472 | 3.0-6.0 | .118-.236 | |||||
| PESAS40140D | 14.0 | .551 | 4.0-8.0 | .157-.315 | |||||
| PESAS40160D | 16.0 | .630 | 6.0-10.0 | .236-.394 | |||||
| PESAS48120D | 4.8{3/16") 5.1(.201) |
12.0 | .472 | 2.0-5.0 | .079-.197 | 1900 | 427 | 1900 | 427 |
| PESAS48140D | 14.0 | .551 | 3.0-7.0 | .118-.276 | |||||
| PESAS48160D | 16.0 | .630 | 5.0-9.0 | .197-.354 | |||||
| PESAS48180D | 18.0 | .709 | 7.0-11.0 | .276-.433 | |||||
| PESAS48200D | 20.0 | .787 | 9.0-13.0 | .354-.512 | |||||
| PESAS48250D | 25.0 | .984 | 12.0-18.0 | .472-.709 | |||||
