Introduction
Features :

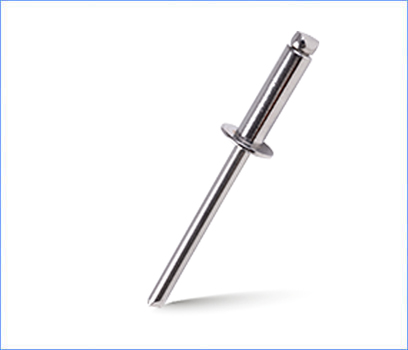

- The classic fastener. Normally manufactured by cold forging the eyelet from wire, long length rivets can be produced from tube, easily identify by the rolled flange.
Advantages :
- Painted colored finishing available to match surrounding
- Dome, countersunk or large flange head style
- Available in a variety of materials
- Ideal for a wide range of application
- Strong but lower cost fastener
Application :
- Office Furniture
- Automative
- Construction
- Building
Specification:
| Part Number | Dia(d) mm/inch |
Length(L) mm/inch |
Grip Range mm/inch |
Shear(n) N/Ibs. |
Tensile(n) N/Ibs. |
|||||||
| OPSKK32060D | 3.2(1/8”) 3.3(.130) |
6.0 | .236 | 1/4 | 0.5 | 3.0 | .020 | .118 | 1900 | 427 | 2500 | 562 |
| OPSKK32080D | 8.0 | .315 | 5/16 | 3.0 | 5.0 | .118 | .197 | |||||
| OPSKK32100D | 10.0 | .394 | 3/8 | 5.0 | 6.5 | .197 | .256 | |||||
| OPSKK32120D | 12.0 | .472 | 6.5 | 8.0 | .256 | .315 | ||||||
| OPSKK32140D | 14.0 | .551 | 8.0 | 10.0 | .315 | .394 | ||||||
| OPSKK32160D | 16.0 | .630 | 5/8 | 10.0 | 12.0 | .394 | .472 | |||||
| OPSKS40060D | 4.0(5/32”) 4.1(.161) |
6.0 | .236 | 1/4 | 1.0 | 3.0 | .039 | .118 | 2700 | 607 | 3500 | 787 |
| OPSKS40080D | 8.0 | .315 | 5/16 | 3.0 | 5.0 | .118 | .197 | |||||
| OPSKS40100D | 10.0 | .394 | 3/8 | 5.0 | 6.5 | .197 | .256 | |||||
| OPSKS40120D | 12.0 | .472 | 6.5 | 9.0 | .256 | .354 | ||||||
| OPSKS40140D | 14.0 | .551 | 9.0 | 10.5 | .354 | .413 | ||||||
| OPSKS40160D | 16.0 | .630 | 5/8 | 10.5 | 12.0 | .413 | .472 | |||||
| OPSKS40180D | 18.0 | .709 | 12.0 | 14.0 | .472 | .551 | ||||||
| OPSKS40200D | 20.0 | .787 | 14.0 | 16.0 | .551 | .630 | ||||||
| OPSKK48080D | 4.8(3/16”) 4.9(.193) |
8.0 | .315 | 5/16 | 2.5 | 4.0 | .098 | .157 | 4000 | 899 | 5000 | 1124 |
| OPSKK48100D | 10.0 | .394 | 3/8 | 4.0 | 6.0 | .157 | .236 | |||||
| OPSKK48120D | 12.0 | .472 | 6.0 | 8.0 | .236 | .315 | ||||||
| OPSKK48140D | 14.0 | .551 | 8.0 | 9.5 | .315 | .374 | ||||||
| OPSKK48160D | 16.0 | .630 | 5/8 | 9.5 | 11.0 | .374 | .433 | |||||
| OPSKK48180D | 18.0 | .709 | 11.0 | 13.0 | .433 | .512 | ||||||
| OPSKK48200D | 20.0 | .787 | 13.0 | 15.0 | .512 | .591 | ||||||
| OPSKK48220D | 22.0 | .866 | 7/8 | 15.0 | 17.0 | .591 | .669 | |||||
| OPSKK48250D | 25.0 | .984 | 1 | 17.0 | 19.5 | .669 | .768 | |||||
