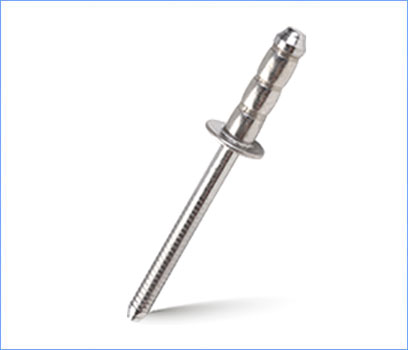

Multi-Grip MG-Series Blind Rivets Staineless Steel

MG Stainless Steel

Introduction

Features :

  • The multi grip blind rivet has a typical grip range of 4-6 mm. Accommodating wider variation in material thickness. It also provide good hole fill, compensating for over sized or slotted holes.
  • The retained mandrel provide strong, vibration resistant joints and spreads the tail bearing load on the blind face.

Advantages :

  • Vibration and moisture resistant.
  • High mandrel head retention.
  • Accommodates over sized and irregular sized holes.
  • Optimum clamp-up force.

Application :

  • Automotive
  • Furniture Industry
  • Plastic
OP Steel

Specification:

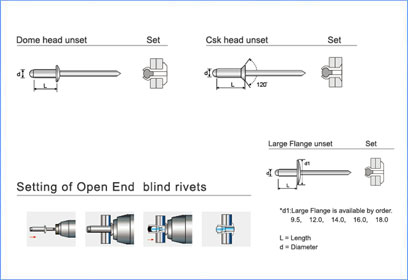

Part Number Dia (d) mm/inch Length (L) mm/inch Grip Range mm/inch Shear (n) mm/inch Tensile (n) mm/inch
MGSKK32120D 3.2(1/8”)
3.3-3.4(.130-.134)
12.0 .472 1.0-6.0 .039-.236 1600 360 1900 427
MGSKK40135D 4.0(5/32”)
4.1-4.2(.161-.165)
13.5 .531 2.0-8.0 .079-.315 2400 540 3200 719
MGSKK48145D 4.8(3/16”)
4.9-5.0(.193-.197)
14.5 .571 1.5-9.0 .059-.354 4100 922 4500 1012
Request Quote
