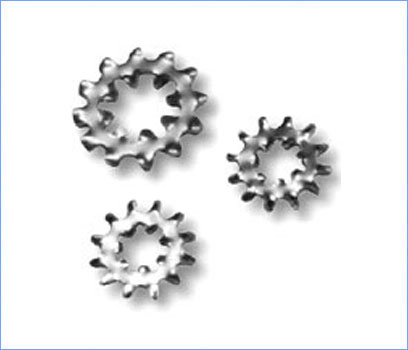

Internal-External Star Lock Washers
All Size Are Available

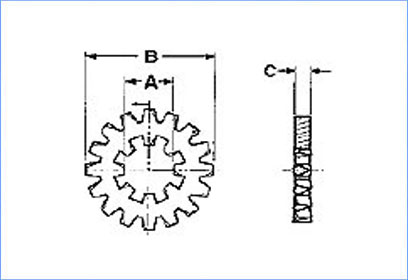

Nominal Washer Size | A | B | C | ||||||||
Inside Diameter | Outside Diameter | Thickness | |||||||||
MAX | MIN | MAX | MIN | MAX | MIN | ||||||
6 | 0.0138 | 0.150 | 0.141 | 0.510 | 0.495 | 0.028 | 0.023 | ||||
8 | 0.164 | 0.176 | 0.168 | 0.610 | 0.580 | 0.034 | 0.02 | ||||
10 | 0.190 | 0.204 | 0.195 | 0.610 | 0.580 | 0.034 | 0.028 | ||||
1/4 | 0.250 | 0.267 | 0.256 | 0.760 | 0.725 | 0.040 | 0.032 |
