Introduction
Features :

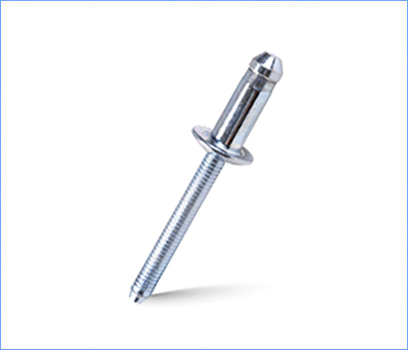

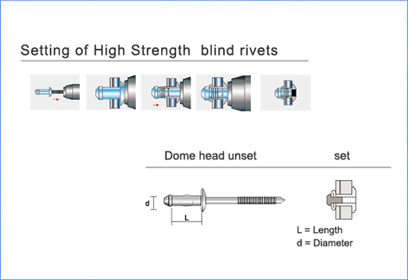

- High Strength blind rivet has exceptional strength for pull out and high shear strength. The mandrel is positively retained or setting and the tight formation is spread to provide a large bearing area. The external mandrel head feature provides aneat appeareance on setting.
Advantages :
- Fills irregular holes
- Provides excellent integrity
- Superior shear and tensile strength, soft and bittle materials inclusive
- Locked, rattle free mandrel
Application :
- Automotive
- Truck building & containers
- Construction & coach work
Specification:
Part Number | Dia (d) mm/inch |
Length (L) mm/inch |
Grip Range mm/inch |
Shear (n) mm/inch |
Tensile (n) mm/inch |
||||
HPSSS64105D | 6.4(1/4”) 6.7-6.9(.264-.272) |
10.5 | .413 | 2.8-4.8 | .110-.189 | 9400 | 2113 | 6600 | 1484 |
HPSSS64125D | 12.5 | .492 | 4.8-6.8 | .189-.268 | 10400 | 2338 | |||
HPSSS64145D | 14.5 | .571 | 6.8-8.8 | .268-.346 | 11400 | 2536 | |||
HPSSS64165D | 16.5 | .650 | 8.8-10.8 | .346-.425 | |||||
HPSSS64185D | 18.5 | .728 | 10.8-12.8 | .425-.504 | |||||
HPSSS64205D | 20.5 | .807 | 12.8-14.8 | .504-.583 | |||||
HPSSS64225D | 22.5 | .886 | 14.8-16.8 | .583-.661 | |||||
HPSSS64245D | 24.5 | .965 | 16.8-18.8 | .661-.740 | |||||
HPSSS64275D | 27.5 | 1.083 | 19.8-21.8 | .780-.858 |
