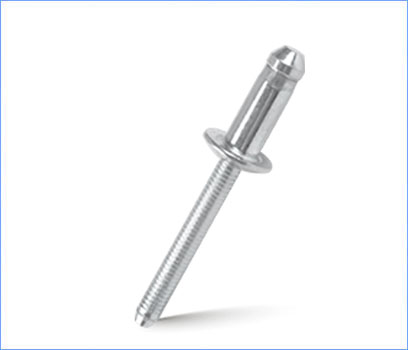

High Strength HP-Lok Blind Rivets Aluminium Alloy

HP Aluminium Alloy

Introduction

Features :

  • The blind rivet with a multigrip clamping range and a high tensile and shear strength offers a high resistance to vibrations and a good watertight conection.
  • After setting the rest mandrel is retained in the body permanently because of the special mandrel locking system.

Advantages :

  • Locking feature prevents loosing of mandrel from vibration.
  • Fastener over wide grip range.
  • Superior holding power.
  • High shear and tensile strength.

Application :

  • Truck building & containers
  • Automotive
  • Construction & coach work
HP Aluminium Alloy

Specification:

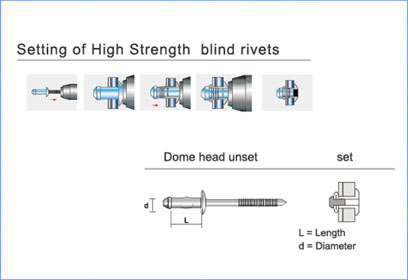

Part Number Dia (d)
mm/inch
Length (L)
mm/inch
Grip Range
mm/inch
Shear (n)
n/lbs
Tensile (n)
n/lbs
HPSAA48100D 6.4(1/4”)
6.7-6.9(.264-.272)
10.5 .413 2.8-4.8 .110-.189 6000 1349 2670 599
HPSAA64125D 12.5 .492 4.8-6.8 .189-.268 6500 1461
HPSAA64145D 14.5 .571 6.8-8.8 .268-.346 7000 1574
HPSAA64165D 16.5 .650 8.8-10.8 .346-.425
