Full Hex Nut Insert Thin

Introduction

A full hex nut insert is a type of fastener that is inserted into a hole in a material and provides a threaded hole for a bolt or screw. It is similar to a round head nut insert, but has a full hexagonal shape rather than a round head. This allows for greater torque to be applied when tightening the insert, as the hexagonal shape provides a larger contact area for a wrench or tool. Full hex nut inserts are commonly made of strong and durable materials such as aluminum, steel, or stainless steel, and are available in a range of sizes and thread types to suit different applications. They are often used in applications where a strong and reliable connection is required, such as in the automotive, aerospace, and construction industries. They can be installed using specialized tools such as a rivet gun or installation tool, and may require pre-drilling or tapping of the material in which they are being installed.

  • Hex Body, Reduced Head - Steel
  • Material : Steel
  • Finish : Zinc Plated Clear trivalent passivated

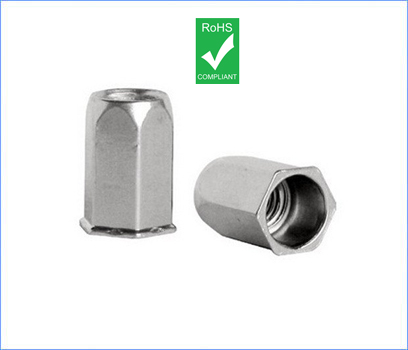

Hex Body, Reduced Head

Specification:

Full Hex Nut Insert Thin

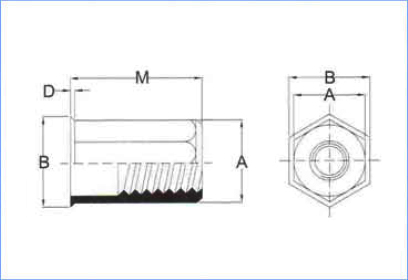

A M (+/- 0.2) B (+/- 0.3) D (+/- 0.2) Recommended
Part Code Size GRPI RANGE HOLE SIZE Body Dia BODY leangth Head Diameter Head Hight Max Torque Pull out Torque - To Push - Out
Max Nom Min Max Nom Min Max Nom Min Max Nm (Max) KN Turn KN
FNITTN04000 M4X0.7 0.5 - 3.0 6.00 5.95 10.30 10.10 10.50 7.00 6.70 7.30 0.50 0.30 0.70 5.10 6.30 4.20 1.40
FNITTN05000 M5X0.8 0.5 - 3.3 7.00 6.95 12.20 12.00 12.40 8.00 7.70 8.30 0.50 0.30 0.70 7.90 8.80 7.50 2.60
FNITTN06000 M6X1 0.5 - 3.3 9.00 8.95 15.00 14.80 15.20 10.00 9.70 10.30 0.60 0.40 0.80 12.40 14.40 10.70 3.20
FNITTN08000 M8X1.25 0.5 - 3.3 11.00 10.95 17.60 17.60 18.00 12.00 11.70 12.30 0.60 0.40 0.80 32.00 15.00 22.70 4.10
FNITTN10000 M10X1.5 0.5 - 3.5 13.00 12.95 23.00 22.80 23.20 14.50 14.20 14.80 0.80 0.60 1.00 45.00 19.70 38.50 5.20
Request Quote

Specification

Full Hex Nut Insert Thin - Long Series
A M (+/- 0.2) B (+/- 0.3) D (+/- 0.2) Recommended
Part Code Size GRPI RANGE HOLE SIZE Body Dia BODY leangth Head Diameter Head Hight Max Torque Pull out Torque - to Push - out
Max Nom Min Max Nom Min Max Nom Min Max Nm (max) KN Turn KN
FNITTN04000G2 M4X0.7 2.0 -3.0 6.00 5.95 12.20 12.00 12.40 7.00 6.70 7.30 0.50 0.30 0.70 5.10 6.30 4.20 1.40
FNITTN05000G2 M5X0.8 3.0 - 4.5 7.00 6.95 14.80 14.60 15.00 8.00 7.70 8.30 0.50 0.30 0.70 7.90 8.80 7.50 2.60
FNITTN06000G2 M6X1 3.0 - 4.5 9.00 8.95 17.80 17.60 18.00 10.00 9.70 10.30 0.60 0.40 0.80 12.40 14.40 10.70 3.20
FNITTN08000G2 M8X1.25 3.0 - 4.5 11.00 10.95 19.00 18.80 19.20 12.00 11.70 12.30 0.60 0.40 0.80 32.00 15.00 22.70 4.10
FNITTN10000G2 M10X1.5 3.0 - 5.0 13.00 12.95 25.00 24.80 25.20 14.50 14.20 14.80 0.80 0.60 1.00 45.00 19.70 38.50 5.20
