Introduction
A full hex nut insert is a type of fastener that is inserted into a hole in a material and provides a threaded hole for a bolt or screw. It is similar to a round head nut insert, but has a full hexagonal shape rather than a round head. This allows for greater torque to be applied when tightening the insert, as the hexagonal shape provides a larger contact area for a wrench or tool. Full hex nut inserts are commonly made of strong and durable materials such as aluminum, steel, or stainless steel, and are available in a range of sizes and thread types to suit different applications. They are often used in applications where a strong and reliable connection is required, such as in the automotive, aerospace, and construction industries. They can be installed using specialized tools such as a rivet gun or installation tool, and may require pre-drilling or tapping of the material in which they are being installed.

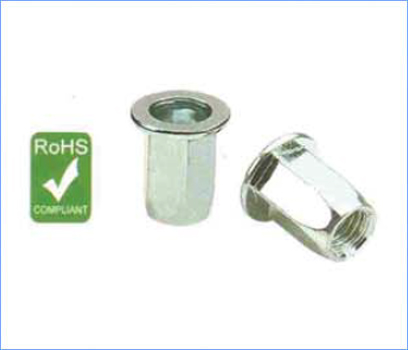

- Hex Body, Flat Head - Steel - Europeon
- Material : Steel
- Finish : Zinc Plated Clear trivalent passivated

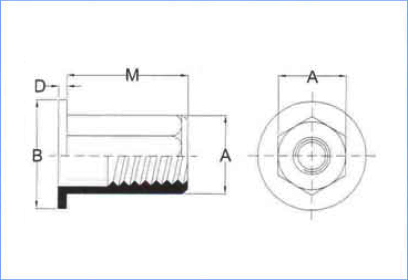

Specification
| Full Hex Nut Insert Thick | |||||||||||||||||
| A | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Recommended | |||||||||||||
| Part Code | Size | GRPI RANGE | HOLE SIZE | Body Dia | BODY leangth | Head Diameter | Head Hight | Max Torque | Pull out | Torque - to | Push - out | ||||||
| Max | Nom | Min | Max | Nom | Min | Max | Nom | Min | Max | Nm (max) | KN | Turn | KN | ||||
| FNITTK04000 | M4X0.7 | 0.5 - 2.5 | 6.00 | 5.95 | 10.30 | 10.10 | 10.50 | 9.00 | 8.70 | 9.30 | 0.90 | 0.70 | 1.10 | 5.10 | 6.30 | 4.50 | 2.20 |
| FNITTK05000 | M5X0.8 | 0.5 - 3.0 | 7.00 | 6.95 | 12.00 | 11.80 | 12.20 | 10.00 | 9.70 | 10.30 | 1.00 | 0.80 | 1.20 | 7.90 | 8.80 | 8.60 | 3.60 |
| FNITTK06000 | M6X1 | 0.5 - 3.3 | 9.00 | 8.95 | 14.50 | 14.30 | 14.70 | 13.00 | 12.70 | 13.30 | 1.50 | 1.30 | 1.70 | 12.40 | 14.40 | 11.90 | 5.30 |
| FNITTK08000 | M8X1.25 | 0.5 - 3.3 | 11.00 | 10.95 | 16.50 | 16.30 | 16.70 | 16.00 | 15.70 | 16.30 | 1.50 | 1.30 | 1.70 | 32.00 | 15.00 | 25.00 | 8.00 |
| FNITTK10000 | M10X1.5 | 0.5 - 3.5 | 13.00 | 12.95 | 22.00 | 21.80 | 22.20 | 19.00 | 18.70 | 19.30 | 2.00 | 1.80 | 2.20 | 45.00 | 19.70 | 45.20 | 9.20 |
Specification:
| Full Hex Nut Insert Thick - Long Series | |||||||||||||||||
| A | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Recommended | |||||||||||||
| Part Code | Size | GRPI RANGE | HOLE SIZE | Body Dia | BODY leangth | Head Diameter | Head Hight | max Torque | pull out | Torque - to | Push - out | ||||||
| Max | Nom | Min | Max | Nom | Min | Max | Nom | Min | Max | Nm (max) | KN | Turn | KN | ||||
| FNITTK04000G2 | M4X0.7 | 2.0 - 3.5 | 6.00 | 5.95 | 11.80 | 11.60 | 12.00 | 9.00 | 8.70 | 9.30 | 0.90 | 0.70 | 1.10 | 5.10 | 6.30 | 4.50 | 2.20 |
| FNITTK05000G2 | M5X0.8 | 3.0 - 4.5 | 7.00 | 6.95 | 13.50 | 13.30 | 13.70 | 10.00 | 9.70 | 10.30 | 1.00 | 0.80 | 1.20 | 7.90 | 8.80 | 8.60 | 3.60 |
| FNITTK06000G2 | M6X1 | 3.0 - 5.0 | 9.00 | 8.95 | 16.50 | 16.30 | 16.70 | 13.00 | 12.70 | 13.30 | 1.50 | 1.30 | 1.70 | 12.40 | 14.40 | 11.90 | 5.30 |
| FNITTK08000G2 | M8X1.25 | 3.0 - 5.0 | 11.00 | 10.95 | 19.00 | 18.80 | 19.20 | 16.00 | 15.70 | 16.30 | 1.50 | 1.30 | 1.70 | 32.00 | 15.00 | 25.00 | 8.00 |
| FNITTK10000G2 | M10X1.5 | 3.0 - 5.5 | 13.00 | 12.95 | 23.50 | 23.30 | 23.70 | 19.00 | 18.70 | 19.30 | 2.00 | 1.80 | 2.20 | 45.00 | 19.70 | 45.20 | 9.20 |
