Introduction
Features :

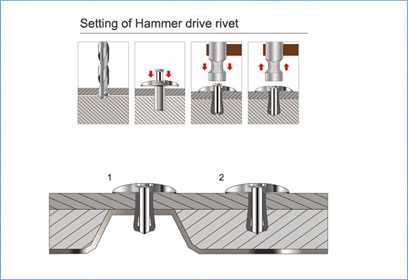

- A rivet which is easy to install by hitting the mandrel with a hammer. The rivet will be pushed into the bottom side like a plug for strong and enhanced clamping force.
Advantages :
- Hole (1) or hole (2) workable.
- Various Material friendly.
- Mandrel is locked in the body.
- Easy to use.
Application :
- Roofing & Building.
- Connection : stones, brick, or concrete etc.
- Swimming Pool Liners.
Specification:
| Part Number | Dia (d) mm/inch | Length (L) mm/inch | Grip Range mm/inch | Shear (n) mm/inch | Tensile (n) mm/inch | ||||
| DRSAK48100L | 4.8(3/16”) 4.9-5.0(0.193-0.197) |
10.0 | .394 | 33.7-36.2 | 1.327-1.425 | 4450 | 1000 | 2000 | 449 |
| DRSAK48160L | 16.0 | .63 | 28.7-31.2 | 1.130-1.228 | |||||
| DRSAK48200L | 20.0 | .787 | 23.7-26.2 | .933-1.031 | |||||
| DRSAK48250L | 25.0 | .984 | 18.7-21.2 | .736-.835 | |||||
| DRSAK48300L | 30.0 | 1.181 | 13.7-16.2 | .539-.638 | |||||
| DRSAK48350L | 35.0 | 1.378 | 9.7-12.2 | .381-.480 | |||||
| DRSAK48400L | 40.0 | 1.575 | 3.7-6.2 | .146-.244 | |||||
