Introduction
Features :

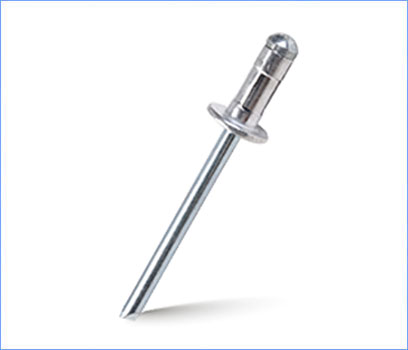

- The multi grip blind rivet has a typical grip range of 4-6 mm. Accommodating wider variation in material thickness. It also provides good hole fill, compensating for over sized or slotted holes. The retained mandrel provide strong, vibration resistant joints and spreads the tail bearing load on the blind face.
Advantages :
- Vibration and moisture resistant.
- High mandrel head retention.
- Accommodates over sized and irregular sized holes.
- Optimum clamp-up force.
Application :
- Plastic
- Automotive
- Furniture Industry
Specification:
| Part Number | Dia (d) mm/inch |
Length (L) mm/inch | Grip Range mm/inch | Shear (n) mm/inch | Tensile (n) mm/inch | ||||
| DGSAS32082D | 3.2(1/8”) 3.3-3.4(.130-.134) |
8.2 | .323 | 0.8-4.8 | .031-.189 | 700 | 157 | 1000 | 225 |
| DGSAS32100D | 10.0 | .394 | 1.2-6.3 | .047-.248 | |||||
| DGSAS32115D | 11.5 | .453 | 4.0-7.9 | .157-.311 | |||||
| DGSAS32135D | 13.5 | .531 | 5.5-9.5 | .217-.374 | |||||
| DGSAS40080D | 4.0(5/32”) 4.1-4.2(.161-.165) |
8.0 | .315 | 0.8-4.7 | .031-.185 | 1100 | 247 | 1600 | 360 |
| DGSAS40095D | 9.5 | .374 | 1.2-6.3 | .047-.248 | |||||
| DGSAS40127D | 12.7 | .500 | 4.0-9.5 | .157-.374 | |||||
| DGSAS40160D | 16.0 | .630 | 6.4-12.7 | .252-.500 | |||||
| DGSAS48110D | 4.8(3/16”) 4.9-5.0(.193-.197) |
11.0 | .433 | 1.6-6.3 | .063-.248 | 1500 | 337 | 2300 | 517 |
| DGSAS48150D | 15.0 | .591 | 4.8-11.1 | .189-.437 | |||||
| DGSAS48175D | 17.5 | .689 | 4.8-12.7 | .189-.500 | |||||
| DGSAS48245D | 24.5 | .965 | 12.7-19.8 | .500-.780 | |||||
