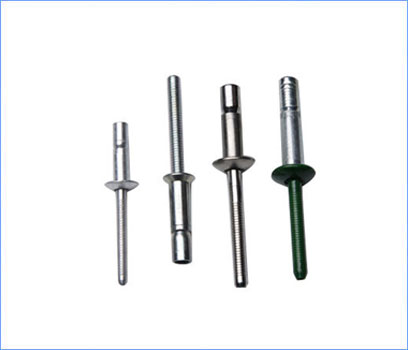

SOF-Stainless Steel In Lock CSK

SSH B

Introduction

Features :

  • stainless steel In Lock CSK

Material :

  • Body : 302 Serise Stainless Steel
  • Mandrel : 302 Serise Stainless Steel

Finish :

  • Body : Natural
  • Mandrel : Natural

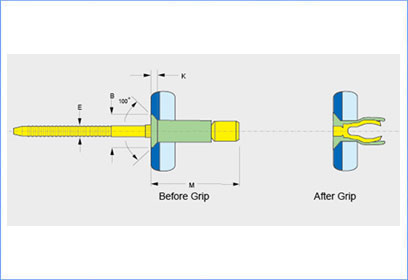

SSH B

Specification:

Part No Size Drill M Grip Range B K E Shear Tensile
Max Max Max Max KN Min KN Min
SSIC-4.8×12.0 4.8
(3/16”)
4.9-5.1 20.2 3.17-8.41 9.2 2.0 3.1 6.0 4.5
SSIC-4.8×14.0 26.5 3.17-12.22 9.2 2.0 3.1 6.0 4.5
SSIC-6.4×17.0 6.4
(1/4”)
6.7-7.0 28.3 4.32-12.07 11.4 2.2 4.1 10.5 8.2
