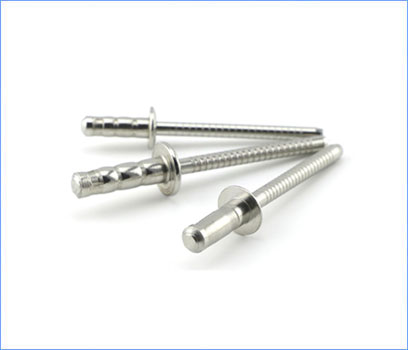

SOF- Steel Multi-Grip -C

SSMG-C

Introduction

Features :

  • All Steel Multi-Grip Type

Material :

  • Body : Carbon Steel
  • Mandrel : Carbon Steel

Finish :

  • Body : Zinc Plated
  • Mandrel : Zinc Plated
SSMG-C

Specification:

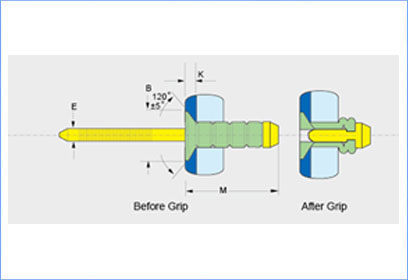

Part No Size Drill M Grip Range B K E Shear Tensile
Max Max Max Max KN Min KN Min
SOFMG-C-0614 4.8
(3/16”)
4.9-5.0 13.7 2.4-6.4 8.8 1.4 3.0 2.7 2.9
SOFMG-C-0618 17.0 2.4-9.5 8.8 1.4 3.0 2.7 2.9
SOFMG-C-0622 20.1 2.4-12.7 8.8 1.4 3.0 2.7 2.9
